Series 501-23, Wall 2 /
Item No. 501-23 7SWS2
|
|
|
|

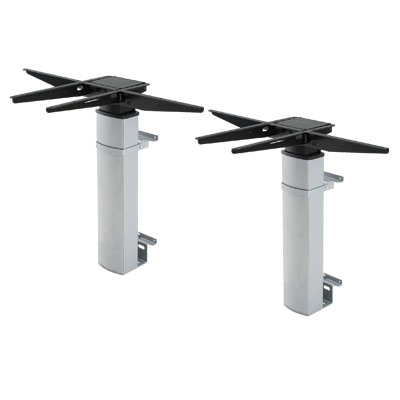

The wall-mounted 501-23 Wall 2 is delivered with table-top support, synchronized motors and control panel, ready for plugin. The table top support can easily be shortened if the desired table top is smaller than the support. Minimum table top measurements: 140 x 50 cm
Maximum table top measurements: 240 x 100 cm
Max load on frame 200 kg. Height range (if mounted at floor level) is 66-118 cm.
Please note that some wall-types might need additional brackets to even out the load. The 79 mm between column and wall allows for mounting a cable tray. |
|
|
A product can consist of several components. For example 3 boxes: Table top, Legs and Cross beam support. Number, description, item number, weight and volume of the separate components are listed below. |
| Item Number |
Description |
|
| 501-23 7SWS2 | Series 501-23, Wall 2 | |
|
| Amount |
Item Number |
Description |
Weight |
Volume |
|
Stock |
| 1 | 501-23 7SXXX | Frameset, Silver | 28 (28) | 0,0360 (0,0360) | |  | | 2 | 501-19 WS | Wallbracket 501-19, silver | 13 (6) | 0,0548 (0,0274) | |  |
|
|
|
|
|
