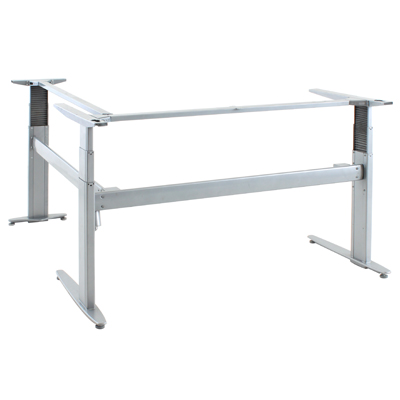

Series 501-29, width (152-152)cm, 125kg, Silver /
Item No. 501-29 7S152-152A
|
|
|
|
The 501-29 frame has 3-parts columns that allow a taller maximum height. Travel cycle is 63-130 cm without table top and 65-132 with table top.
Despite of the light design, the frame has an improving lift capacity of 125 kg. Into the bargain of a 501-19 you get a built-in cable tray plus automatic stop safety switch function.
When choosing a 200 cm table top, you'll find plenty of space for a pedestal next to the frame. Last but not least this is a frame with a smart contemporary design.
Download technical specifications for frame
Download mounting instructions
Download ConSet brochure |
|
|
|
A product can consist of several components. For example 3 boxes: Table top, Legs and Cross beam support. Number, description, item number, weight and volume of the separate components are listed below. |
| Item Number |
Description |
|
| 501-29 7S152-152A | Series 501-29, width (152-152)cm, 125kg, Silver | |
|
| Amount |
Item Number |
Description |
Weight |
Volume |
|
Stock |
| 1 | 501-29 7SXXX | Frameset, silver | 20 (20) | 0,0643 (0,0643) | |  | | 1 | 501-29 WS152A | Width-traves 152cm, silver | 14 (14) | 0,0355 (0,0355) | | | | 1 | 501-29 DS152A | Depth-traves 3rd leg, silver | 17 (17) | 0,0588 (0,0588) | |  |
|
|
|
|
